PRODUCT DESCRIPTION

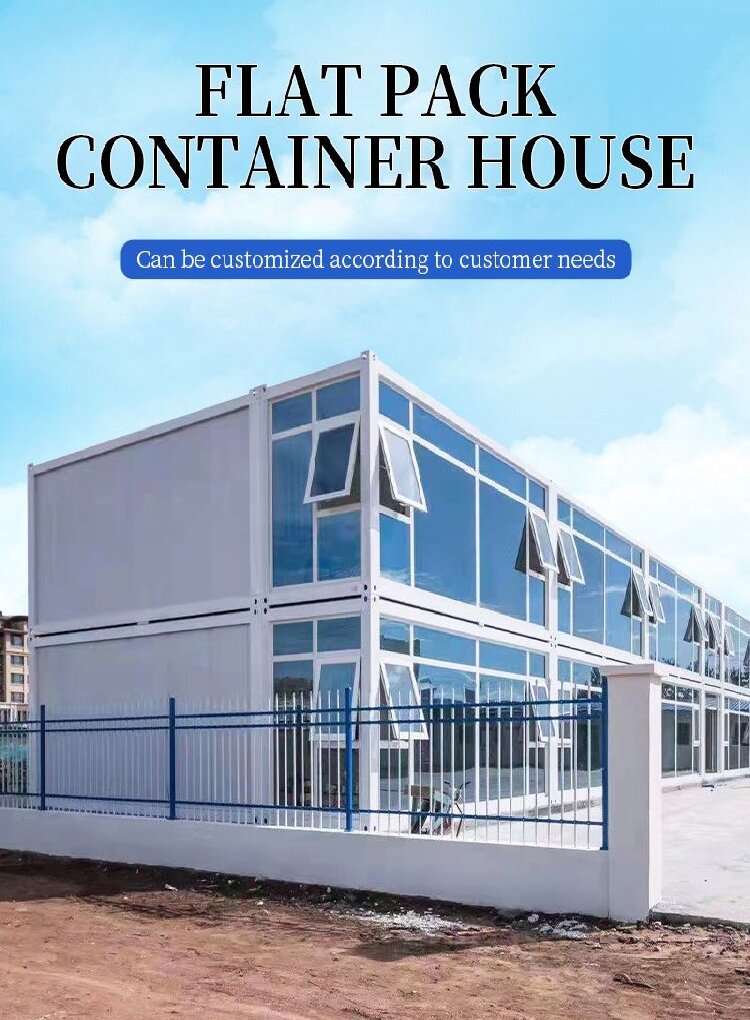

Flat pack container houses, as a new generation product in the temporary construction industry, are famous for their unique modularity and mobility.

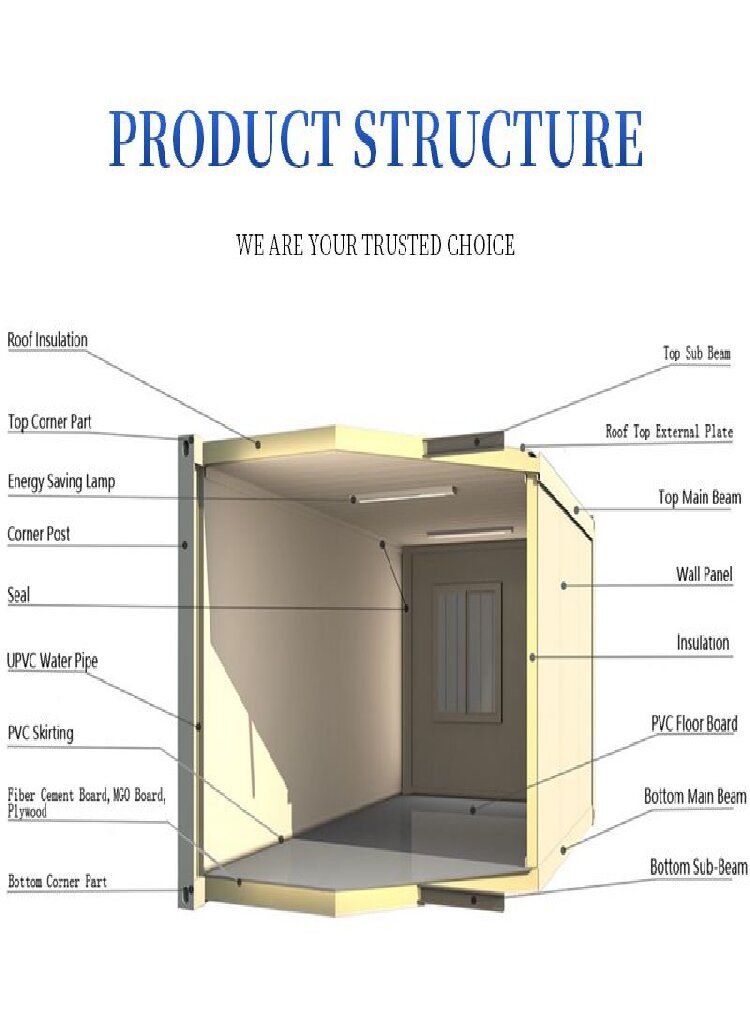

It adopts a steel frame structure, and the main steel material is cold-formed galvanized material, ensuring the strength and durability of the house. This building form is prefabricated in the factory by system modules such as top frames, corner columns and bottom frames, and can be quickly assembled on site without complicated construction.

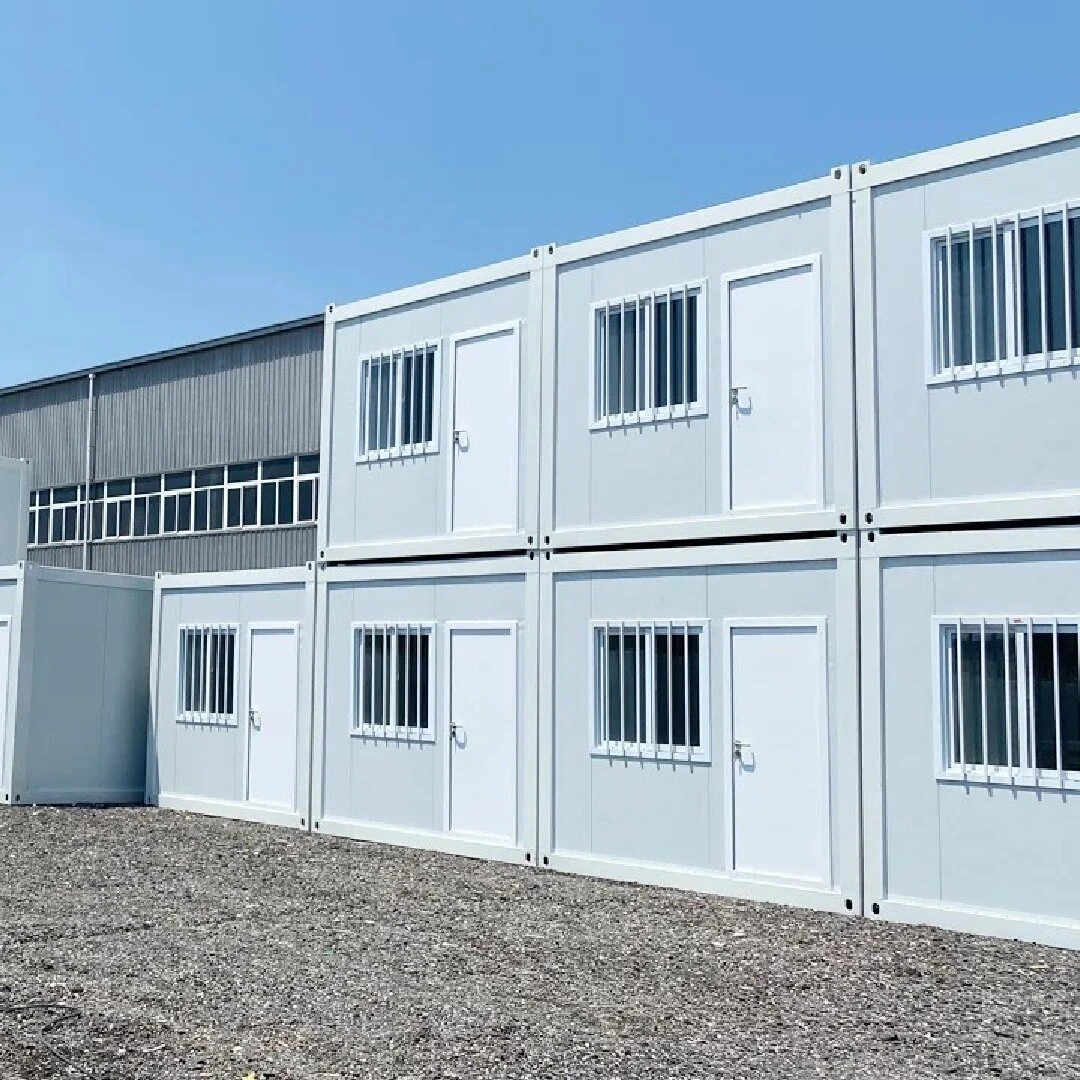

Flat pack container rooms are widely used in offices, dormitories, conference rooms, bathrooms and other places, and can be easily used.





Specifications and Parameters:


Structural

high-quality hot-rolled Q235 galvanized steel

Roof

steel beam, rock wool sandwich panel, corrugated color steel ceiling

Wall

color-coated galvanized steel plate, foam, rock wool

Door and window

plastic steel, aluminum alloy or customization

Color

white, wood grain or customization

Size

5850*2430*2896mm or customization

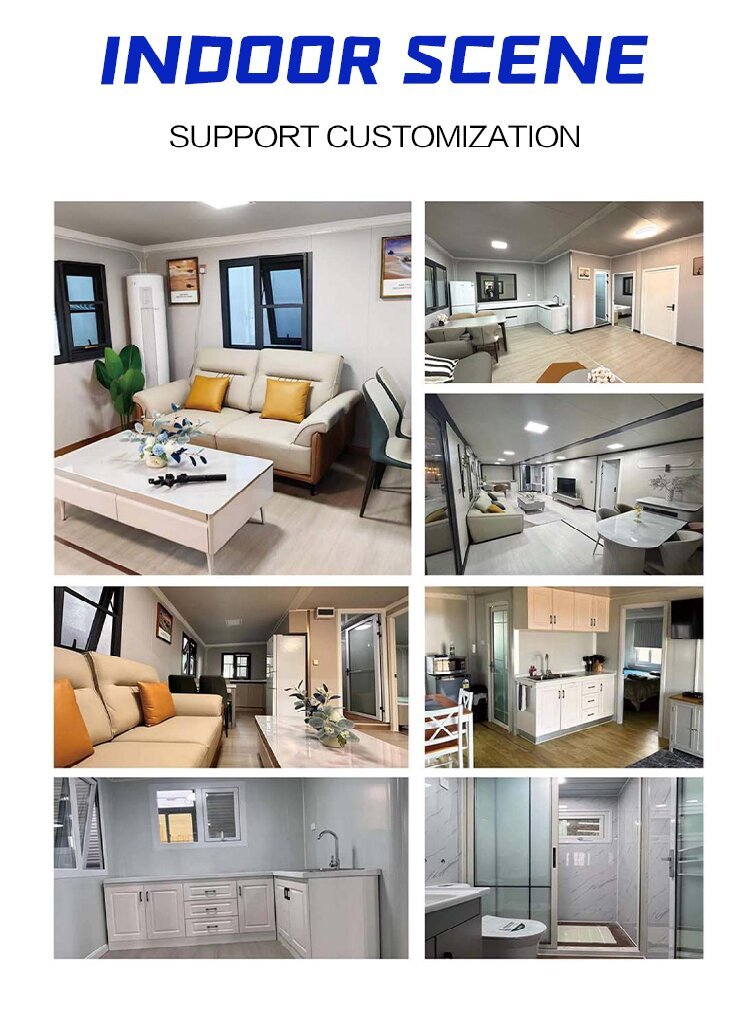

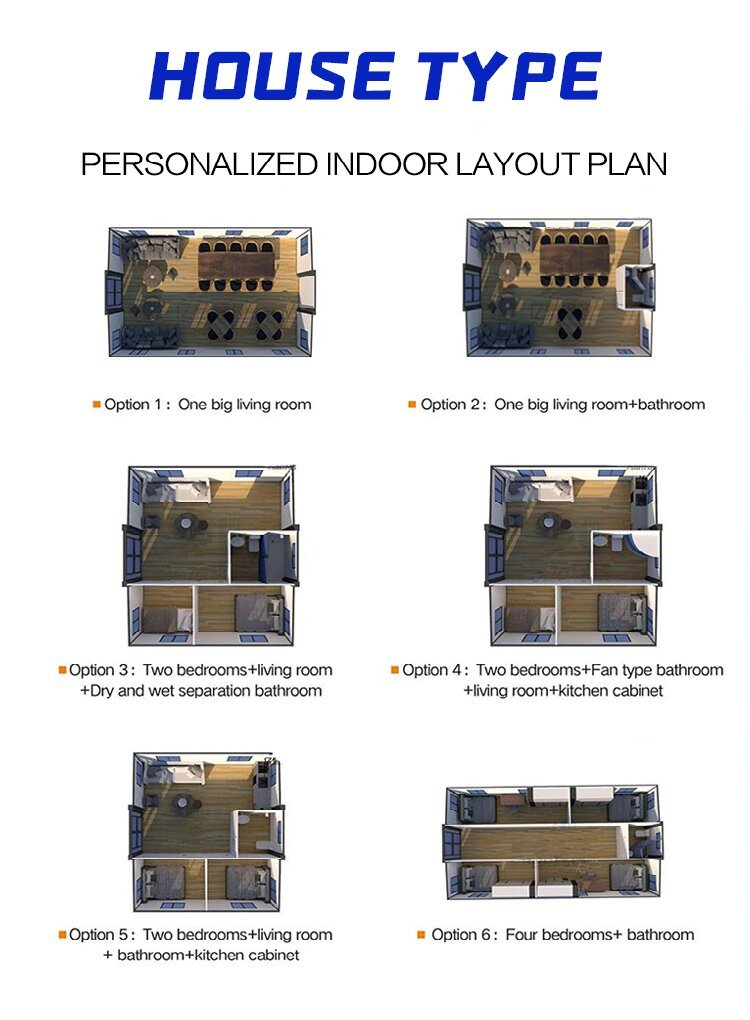

Internal design

free design

Standard

strictly follow ASTM, JIS, EN, DIN, GB and other international and domestic authoritative standards

Product life

more than 20 years

Transportation

sea transportation, 6-8 sets/1*40hq




Product Features:

1. Highly practical

The house has strong earthquake and wind resistance, good insulation effect, strong load-bearing capacity, can be combined and stacked for use, and the service life can reach more than 20 years.

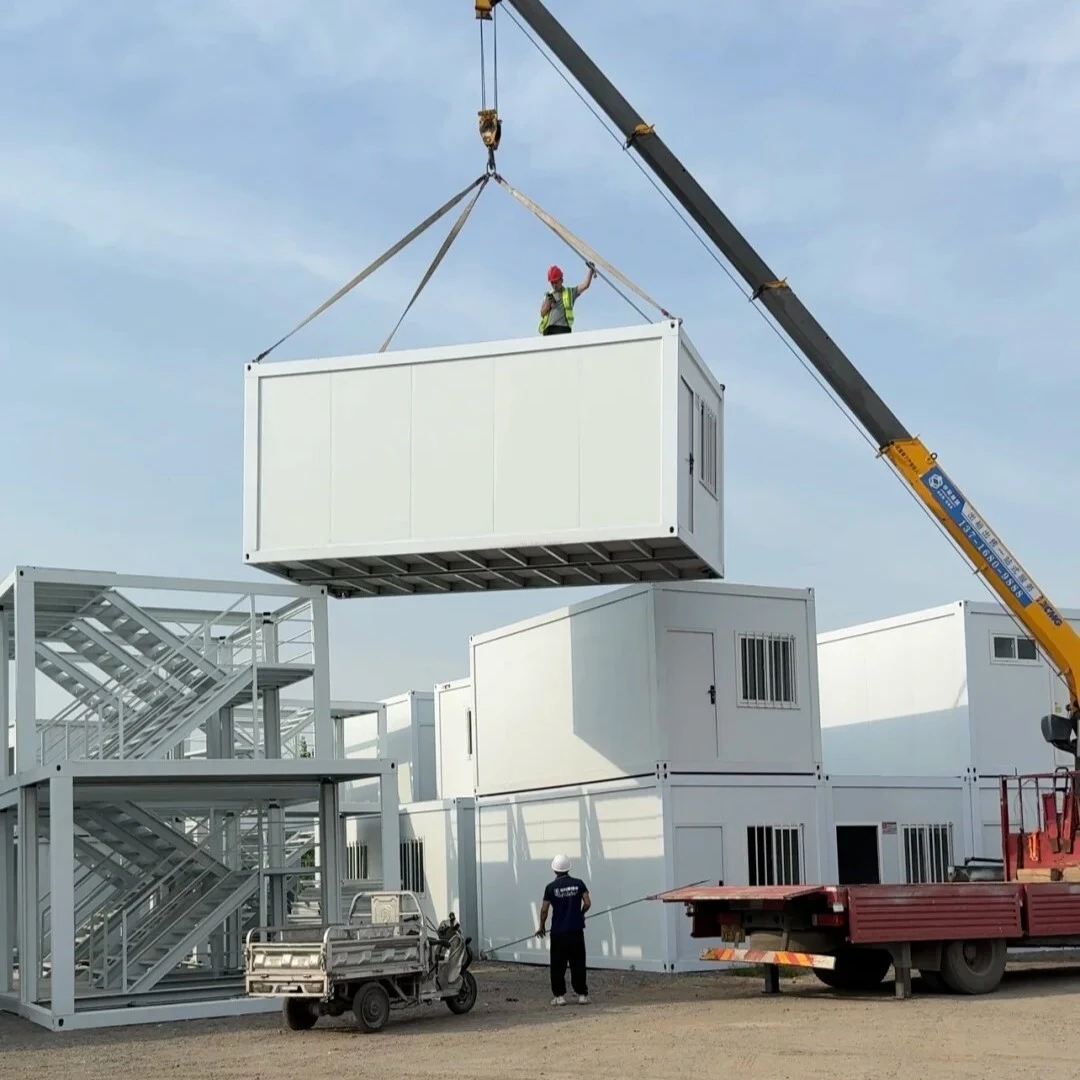

2. Fast installation and easy transportation

Whether it is integrated or split transportation, it can be easily implemented to meet the needs of rapid deployment.

3. Wide application scenarios

There are no special requirements for the site, and it can be used immediately, saving a lot of time and cost.

4. Green and environmentally friendly

No construction waste is generated, which is in line with modern environmental protection concepts.

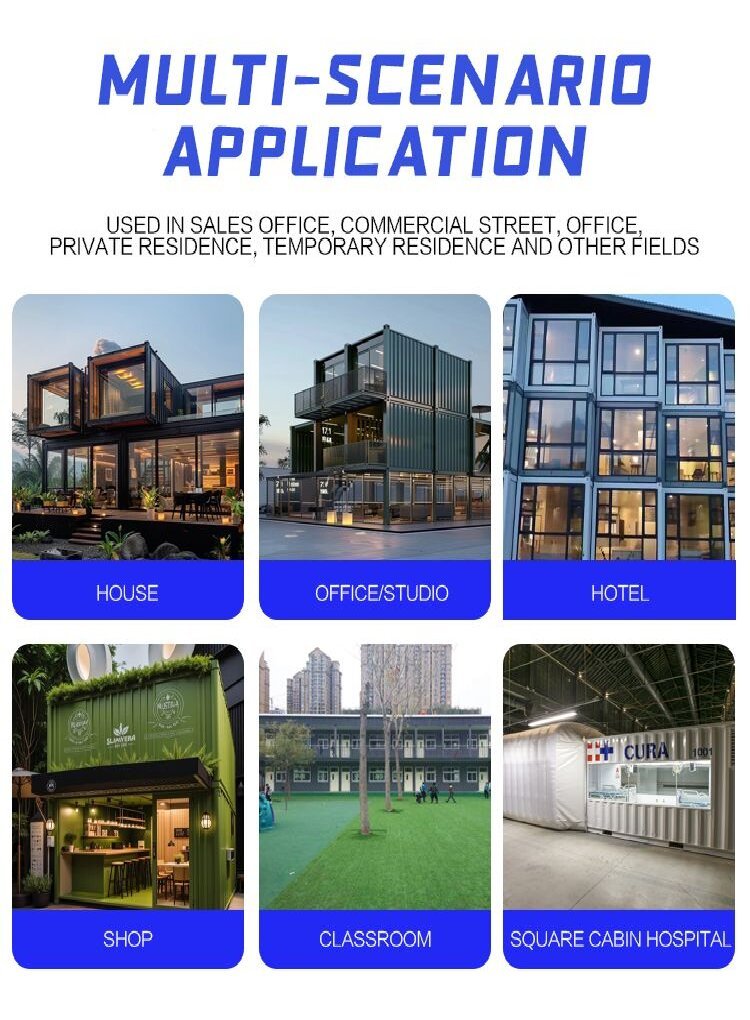

Application Scenarios:

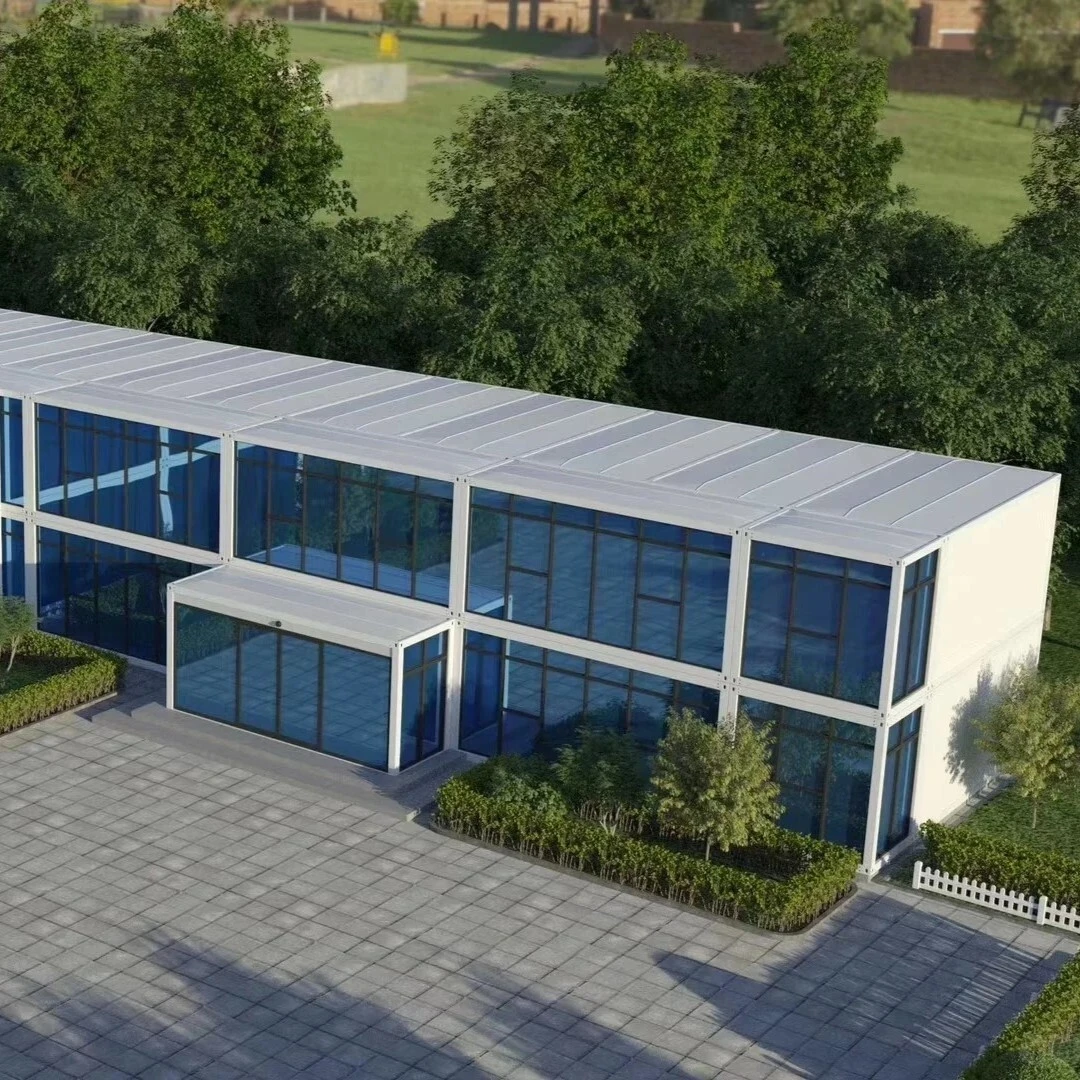

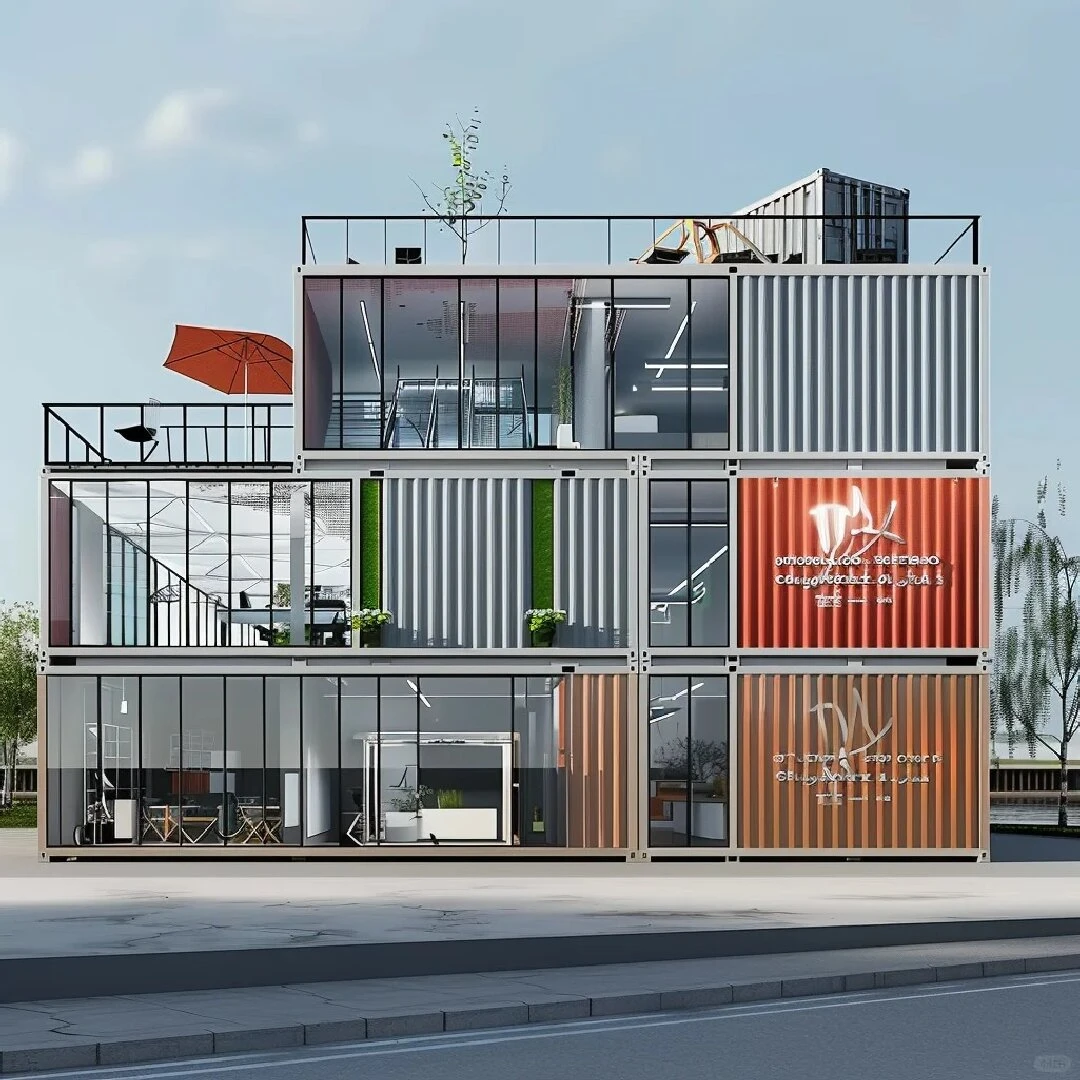

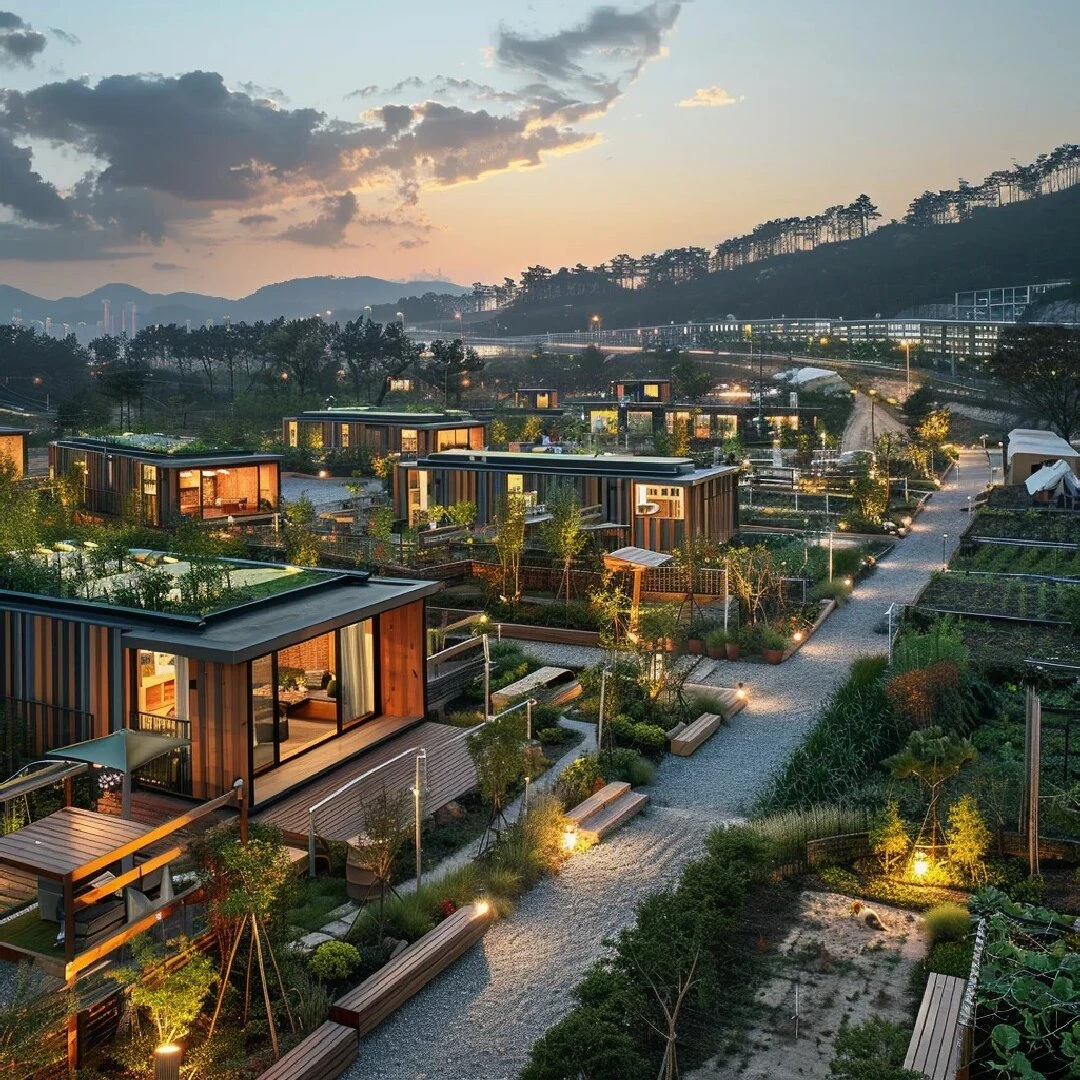

Residence/Office/Hotel/Shop/School/Hospital/Camping/etc

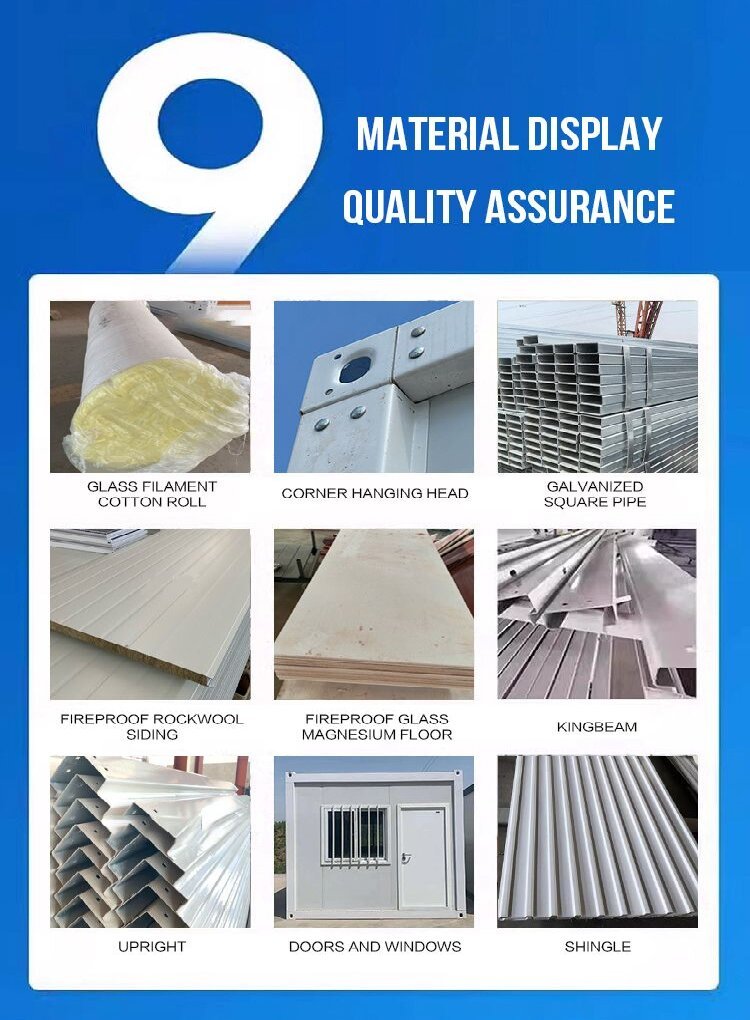

    Flat Pack Container House
Size   5850*2430*2896mm
Inner size   5690*2270*25000mm
Packing size   5850*2430*560mm
Weight   1200kg
Top frame180mm high4 large hanging heads,
80C steel 1mm thick
30*30*1mm square tube,
top beam length L=5428 *2 pcs,
short beam L=2128*2.3mm *4 pcs galvanized zinc ftitting
Bottom frame 160mm width4 large hanging heads,
square tube 100mm*50mm *9pcs
ong beams L=5668 *2pcs, L=2668 *2pcs,
short beam 160mm
Column   160*160*2510mm *4 pcs, L=2110 *4pcs,
hexagon socket bolts(12*30), rib 2pcs
Color roll cap   75 glass wool,
colored tile 0.4mm thick,
special waterproof method PE film
Down pipe   450mm, L2730mm PVC downpipe *4pcs
Ceiling tile   831 tile type, 0.3mm thick ceiling tile *7pcs
Angle aluminum   Fixed ceiling tile (same material as ceiling tile)
Calcium silicate board   18mm calcium silicate board, 1178*2820mm *5pcs
Floor   1.0mm thick floor leather, with wear-resistant layer
Steel doorContainehouse special steel door 970*1970mm *lpc stainless steel AB type lock
Plasstic steel window   Single layer, sliding wndow, size 930*1130mm *2 pcs
Double layer 0.26 thick950 type 50mm thick,
double peel thick 0.25,
orange peel color.single surface film,
oad capacity 50kg rock wool
Inner corner fold   Color steel finished product 2500mm*4 pcs include fix parts
/   PVC whitecolor, 5800mm *3pcs
Parts   Installation screw, connecting plate, structural glue 995 type, etc.
StandardBrand 3 hole socket *3pcs,
5 hole socket *2pcs,
switch *1pc,
LED strip ceiling lamp *2pcs,
PVC distribution box *1pc,
32A leakage protection *1pc,
32A industry socket *1set,
main wire 4m²,
socket wire 2.5m²,
light wire 1m²




Frequently Asked Questions (FAQ):

Q: What are the advantages of your factory?

A: We not only have a container house assembly factory, but also steel raw material production factories, which does not rely on procurement and saves purchase costs of material, more competitive prices and best after-dales service than other factory.

Q: How do you control quality?

A: Mill Test Certification is supplied with shipment, third Party Inspection is also available.

Q: What is your supply capacity?

A: 50 sets of container houses per day and 1,500 sets per month.

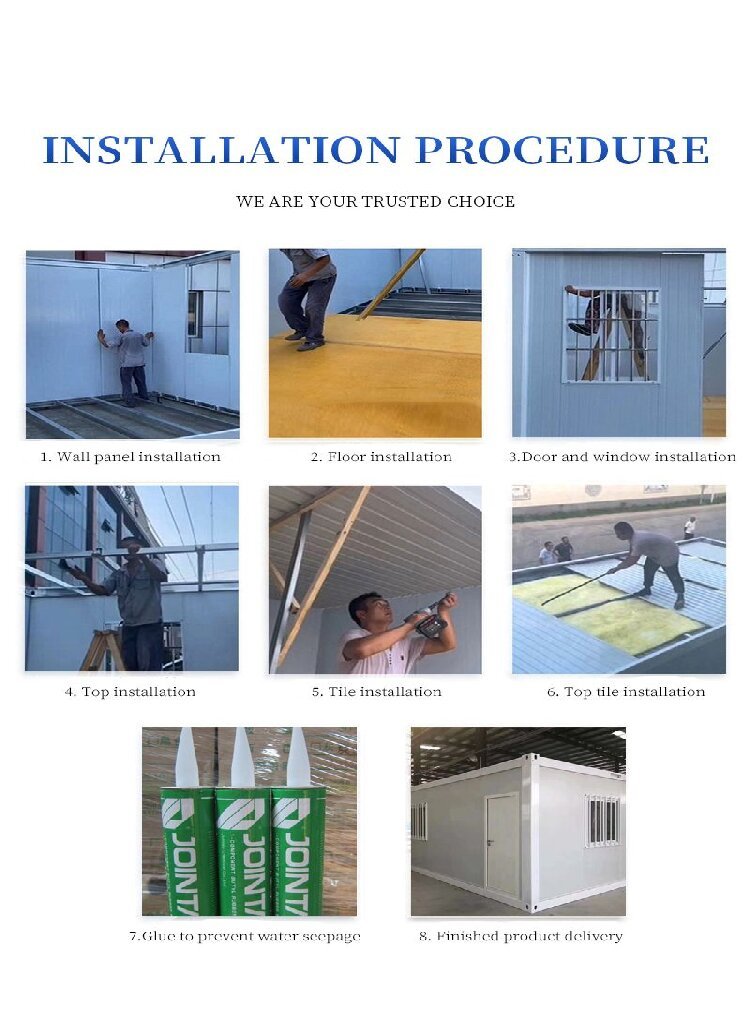

Q: How to install?

A: Instruction manual and video will be provided or online technical support installation instructions, to ensure that customers can complete the installation quickly and well.

Q: How long is your delivery time?

A: It depends on the order quantity and delivery destination, Please consult customer service to define specific time.

Q: How many coutries you already exported?

A: Exported to more than 50 countries mainly from North America, South America, Southeast Asia, Middle East, Africa, etc.
