PRODUCT DESCRIPTION

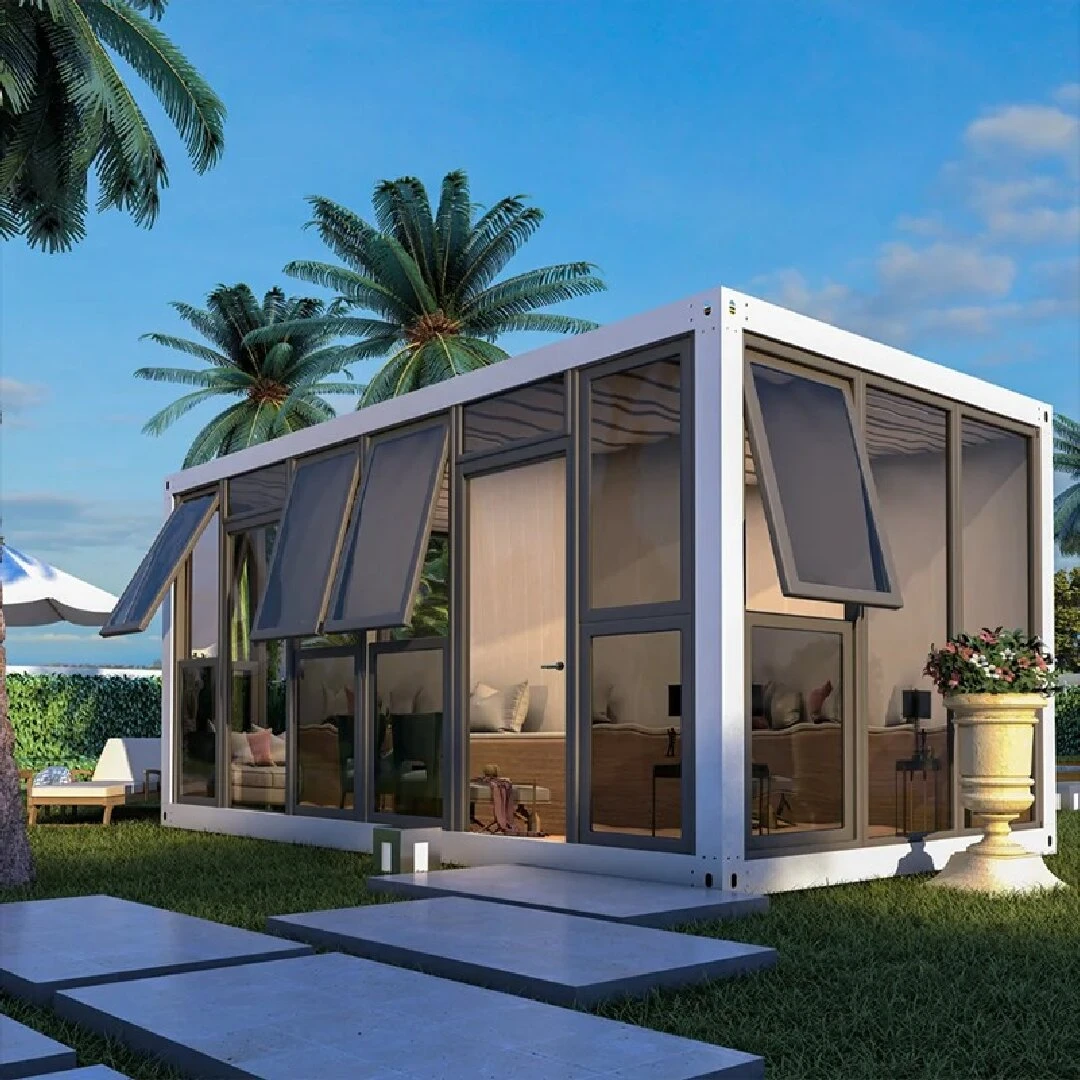

Detachable container house, also known as quick-assembled hosue or assembled house, is a type of container mobile house. It consists of a frame and wall panels, which are fixed and connected by screws without welding. This design makes the  detachable container house very convenient and quick in transportation and installation, and is especially suitable for units that frequently change construction sites.

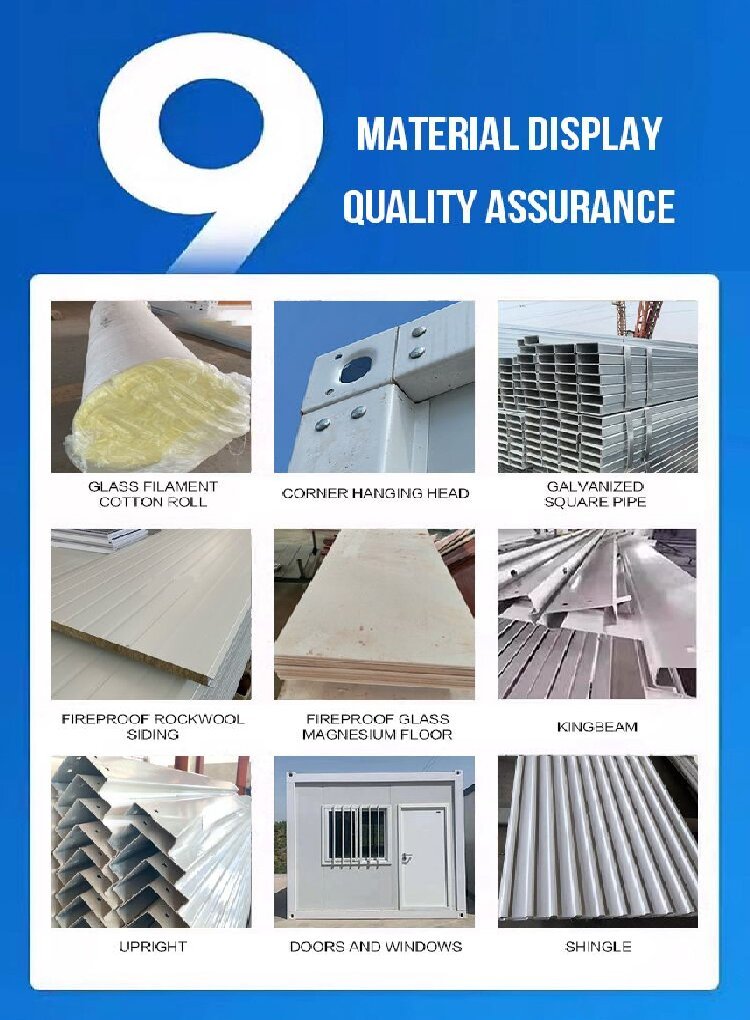

Specifications and Parameters:



Structural

high-quality hot-rolled Q235 galvanized steel

Roof

steel beam, rock wool sandwich panel, corrugated color steel ceiling

Wall

color-coated galvanized steel plate, foam, rock wool

Door and window

plastic steel, aluminum alloy or customization

Color

white, wood grain or customization

Size

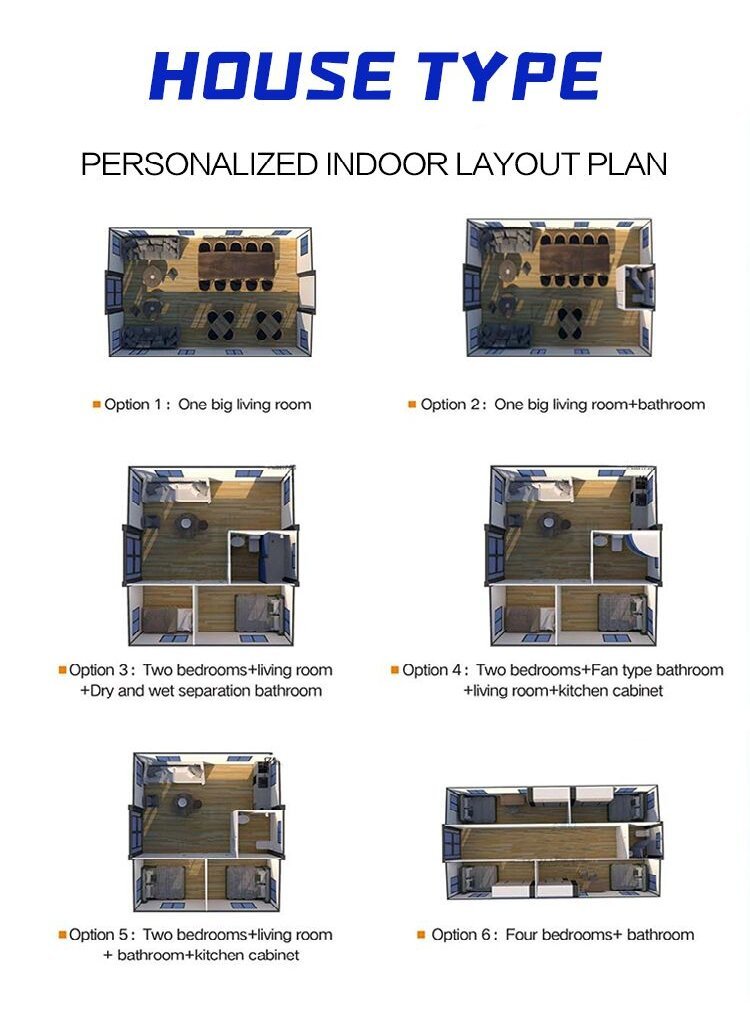

Internal design

free design

Standard

strictly follow ASTM, JIS, EN, DIN, GB and other international and domestic authoritative standards

Product life

more than 20 years

Transportation

sea transportation, 16-17 sets/1*40hq







Product Features:

1. Space saving

It can be kept compact when not in use, reducing the ground space occupied. When needed, the usable area can be quickly increased to improve space utilization.

2. Flexible and light

It has a light structure, is easy and quick to disassemble and assemble, can be reused many times, has a flexible design, and can be customized according to different scenarios and needs.

3. Economical and practical

It has a lower cost than traditional buildings. At the same time, its long service life and low maintenance cost make it an economical and practical building solution.

4. Safe and reliable

It is built with prefabricated modules and has a safe and reliable structure. During the design and production process, it will undergo strict quality control and safety testing to ensure that it can withstand various environmental conditions and pressures during use.

5. Stable and durable

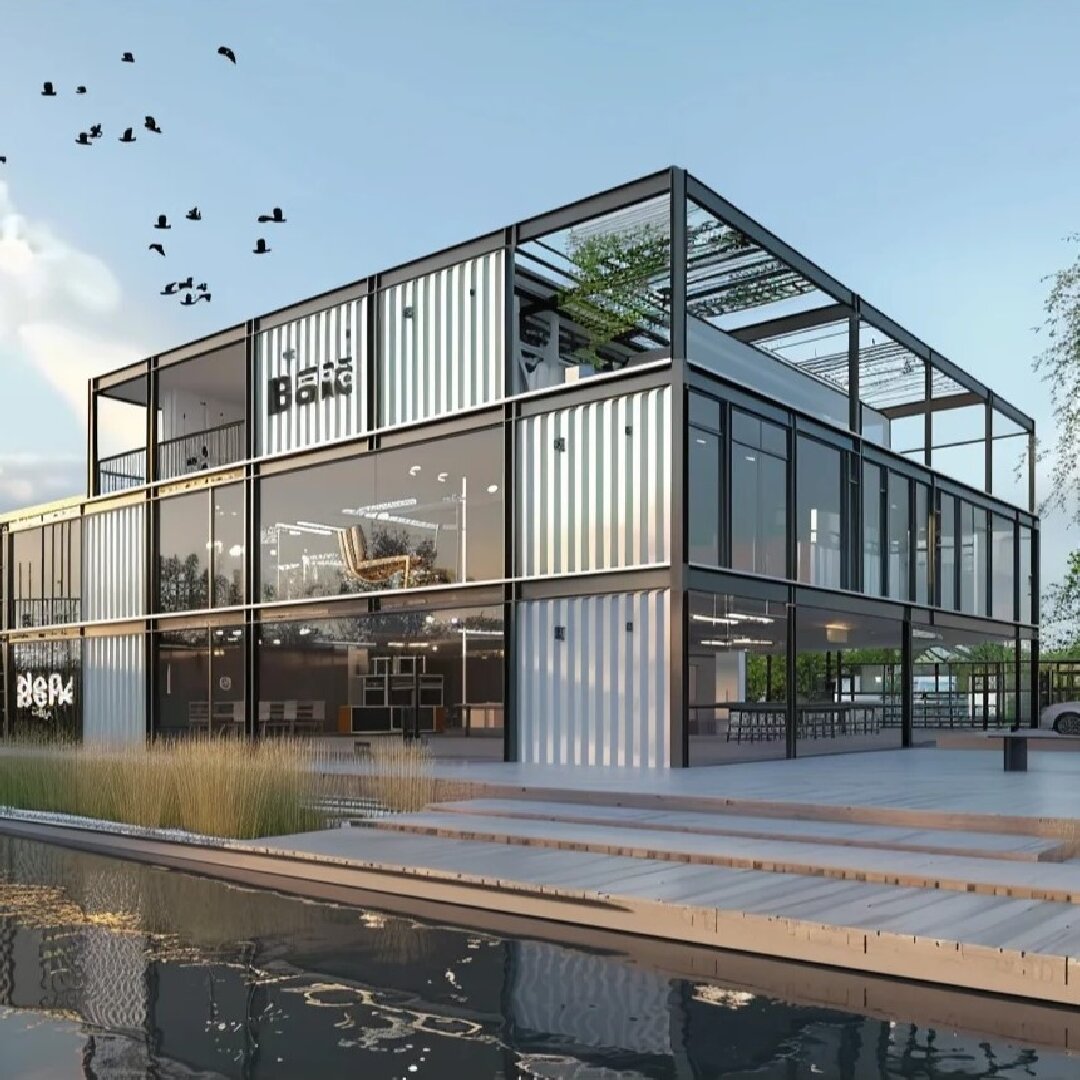

The overall steel frame structure has a long service life, good wind and earthquake resistance, good sound insulation and heat insulation, high stability, strong load-bearing capacity, and can be stacked in multiple units.

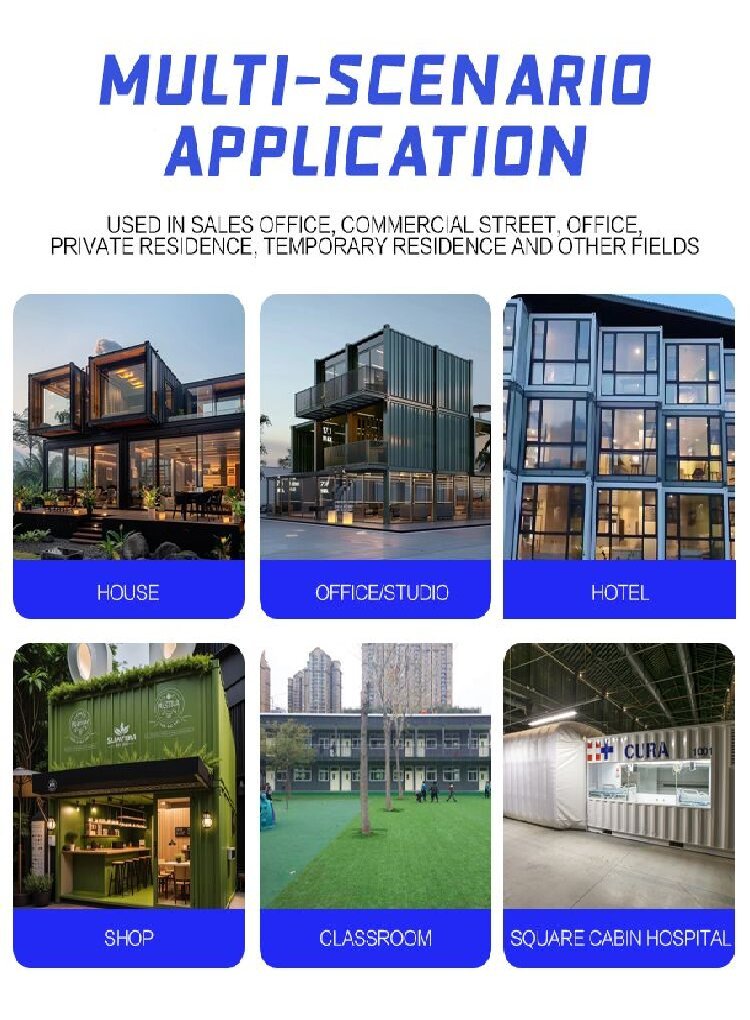

Application Scenarios:

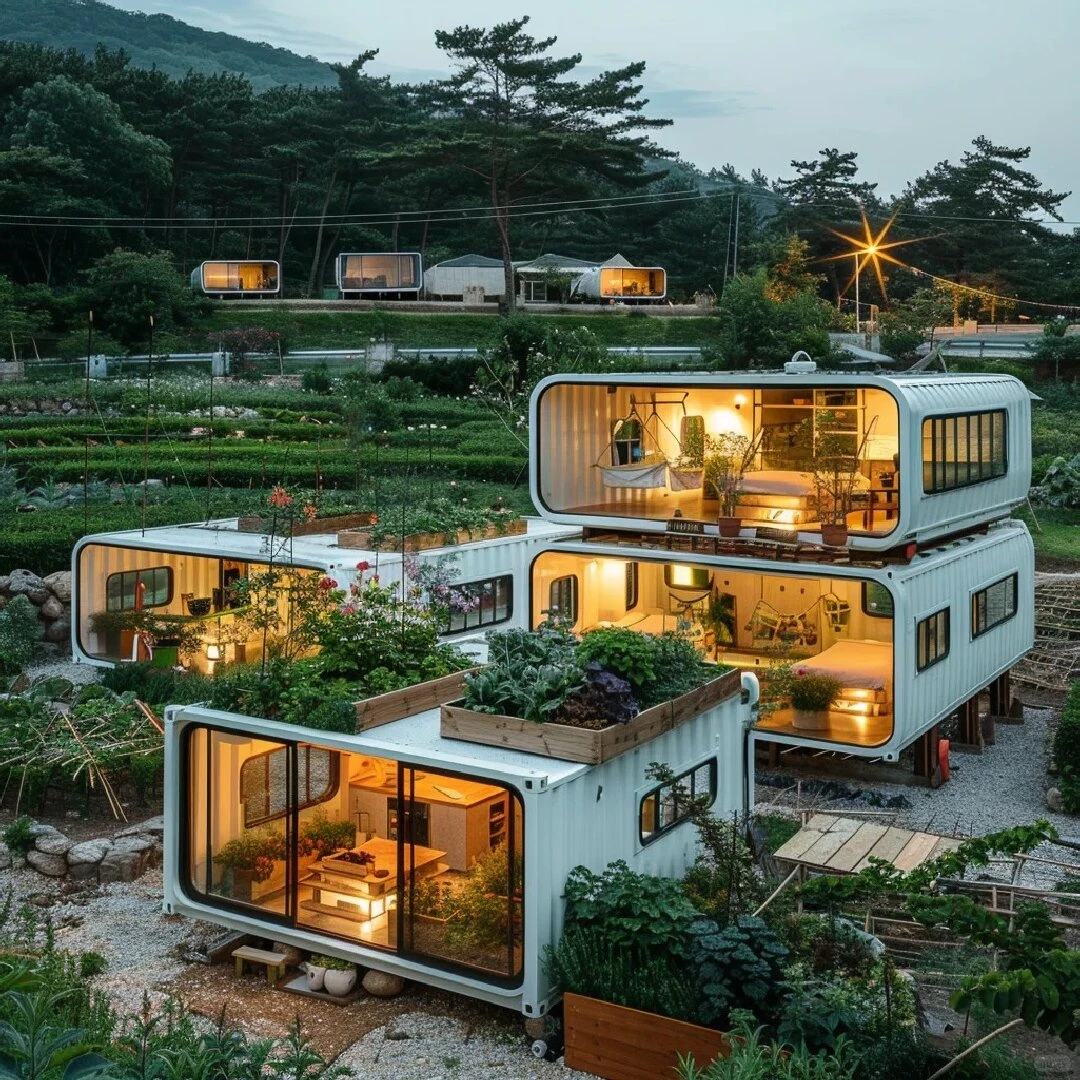

Residence/Office/Hotel/Shop/School/Hospital/Camping/etc



Detachable     Container
Size5850*2990*2880mm
Weight1200kg
2.3mm     FrameTop frame160mmCorner fitting 3.0mm*4pcs 80C steel 1.0mm*5 pcs
Square tube:40*60*1.0mm*1pc,30*30*1.0mm*2 pcs
Upper cross beam:L=5580mm 2.3mm,Last beam:
L=2670mm 2.3mm
Bottom frame 160mmCorner fitting 3.0mm*4pcs
Square tube:100*50*1.0mm*9pcs,40*40*1.0mm*1pc
Bottom crossbeam:L=5580mm,2.3mm,bottomsecond
beam:L=2670mm,2.3mm
160*160mm
Column
160*1602510mm,2.3mm*4pcs,hexagon socket
bolt(12*30)*4Opcs
Strength/Reinforced rib 2.5mm*2pcs,L-shape
connector*8 pcs
Color steel roof
capping
0.4mm  thick  capped  corrugated  single  tile,special
waterproof  method
PE film,75mm glass woolinsulation blanket
Suspended
Ceiling System
Integrated ceiling tile831 tile type,thick 0.3mm*7pcs
Colorsteelangle
aluminum
Fixceiling Tile(same materialas ceiling tile)
Ground      SystemCement boardCement sand board thick18mm 1164*2820mm*5pcs

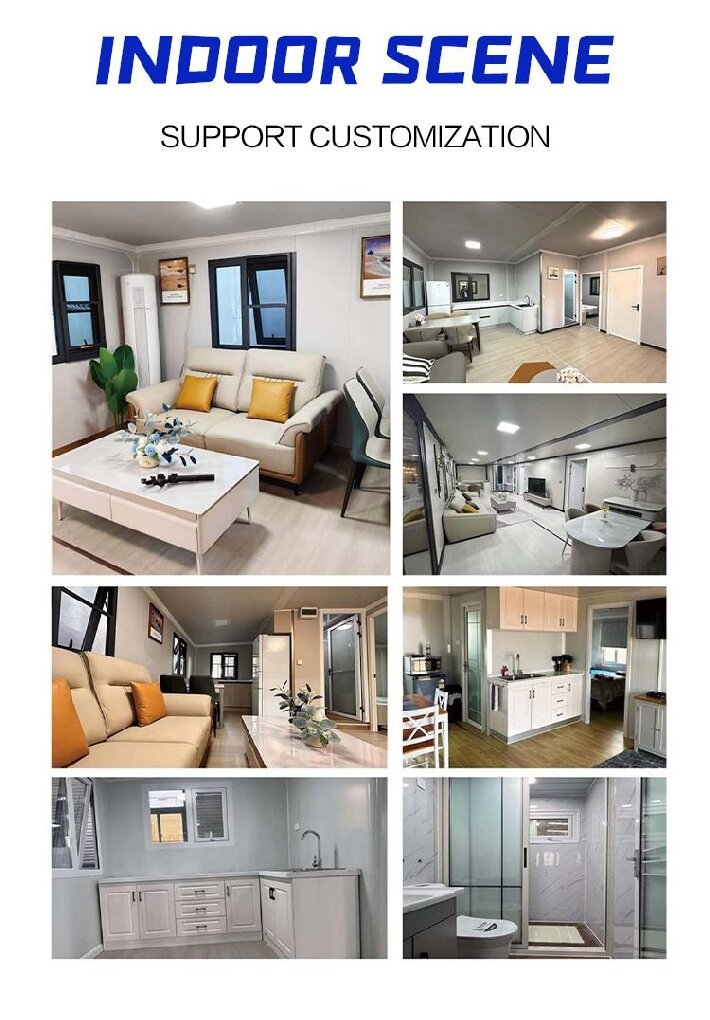

Interior Decorative
Line
Door/Gate
Concave lineColored steel finished column with internal corner
2510mm84 pcS
Skirting lineWhite PVC skirting*3pcs
WindowSteel doorSteel door Door thick 0.4mm,frame0.6mm,970*1970mm
(stainless steel pressure handle AB lock)
Wall BoardPlastic-steel windowSingleglassdouble push,0.3mm,930*1130mm with ant
theft mesh screen window*2 pcs
Auxiliary Materia95Otype950type-50mm thick-03 iron sheet-50kg-double-side
orange peel pattern

/Screw,connecting plate,neutral silicone weather resistant
sealant
Electric
Distribution
High endSix channel PVC distribution box *1
32A leakage protector*1
Industrial socket"1
LED ceiling strip light*2
3-hole socket*1,5-pole socket ·2
Switch*1
Circuit breaker"1
Main line wire 6
Air conditioner wire 4m²
Socket wire 2.5m
light wire  1.0m²




Frequently Asked Questions (FAQ):

Q: What are the advantages of your factory?

A: We not only have a container house assembly factory, but also steel raw material production factories, which does not rely on procurement and saves purchase costs of material, more competitive prices and best after-dales service than other factory.

Q: How do you control quality?

A: Mill Test Certification is supplied with shipment, third Party Inspection is also available.

Q: What is your supply capacity?

A: 50 sets of container houses per day and 1,500 sets per month.

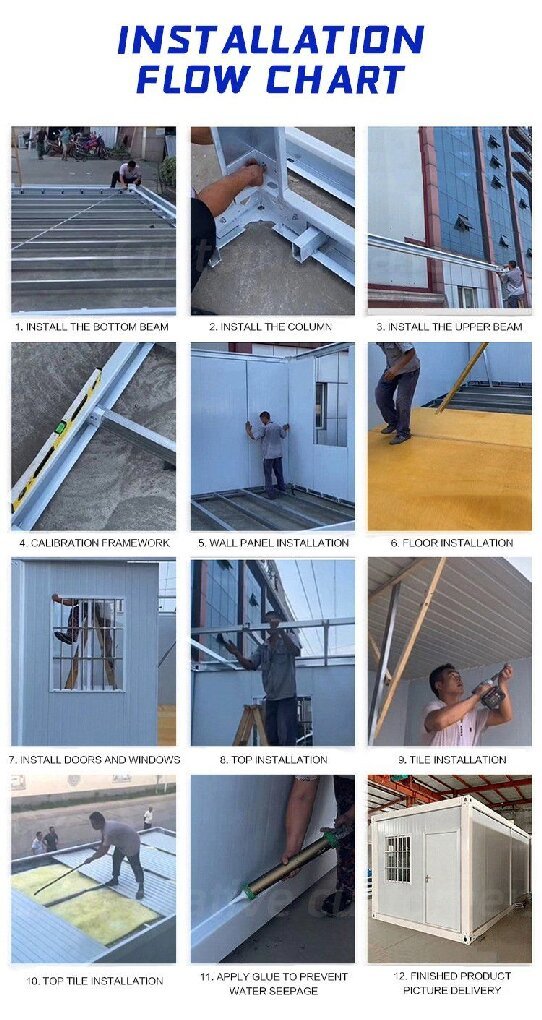

Q: How to install?

A: Instruction manual and video will be provided or online technical support installation instructions, to ensure that customers can complete the installation quickly and well.

Q: How long is your delivery time?

A: It depends on the order quantity and delivery destination, Please consult customer service to define specific time.

Q: How many coutries you already exported?

A: Exported to more than 50 countries mainly from North America, South America, Southeast Asia, Middle East, Africa, etc.
