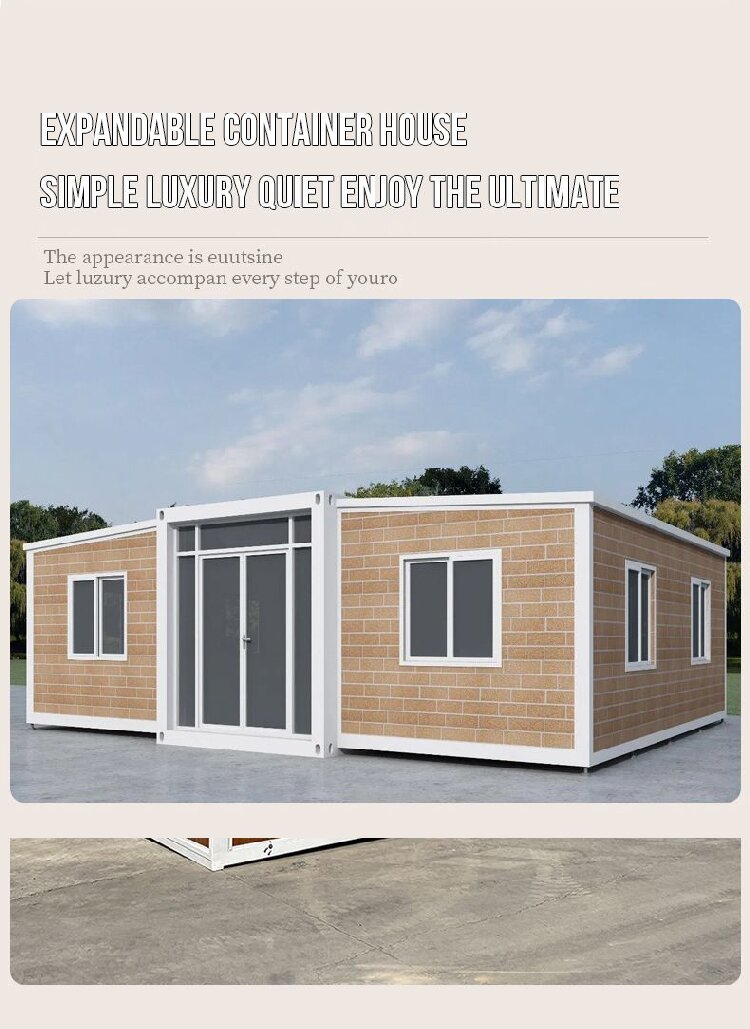

PRODUCT DESCRIPTION

The double-wing expanable container house house is a special type of mobile house. Its design feature is that it can increase the internal usable space by expanding on both sides (i.e. "double wings"), and it has the characteristics of flexibility, space saving, economy and practicality.

This design allows the container house to be compact and portable while being able to flexibly expand the space according to actual needs, thereby meeting the use needs in different scenarios.







Specifications and Parameters:

Structural

high-quality hot-rolled Q235 galvanized steel

Roof

steel beam, rock wool sandwich panel, corrugated color steel ceiling

Wall

color-coated galvanized steel plate, foam, rock wool

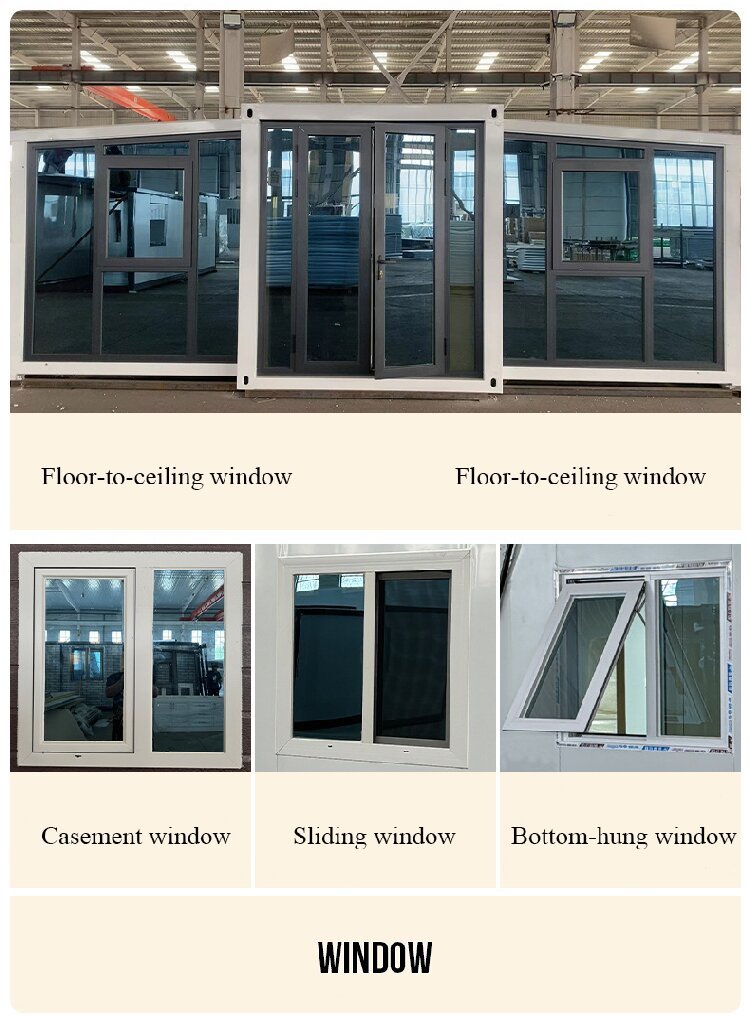

Door and window

plastic steel, aluminum alloy or customization

Color

white, wood grain or customization

Size

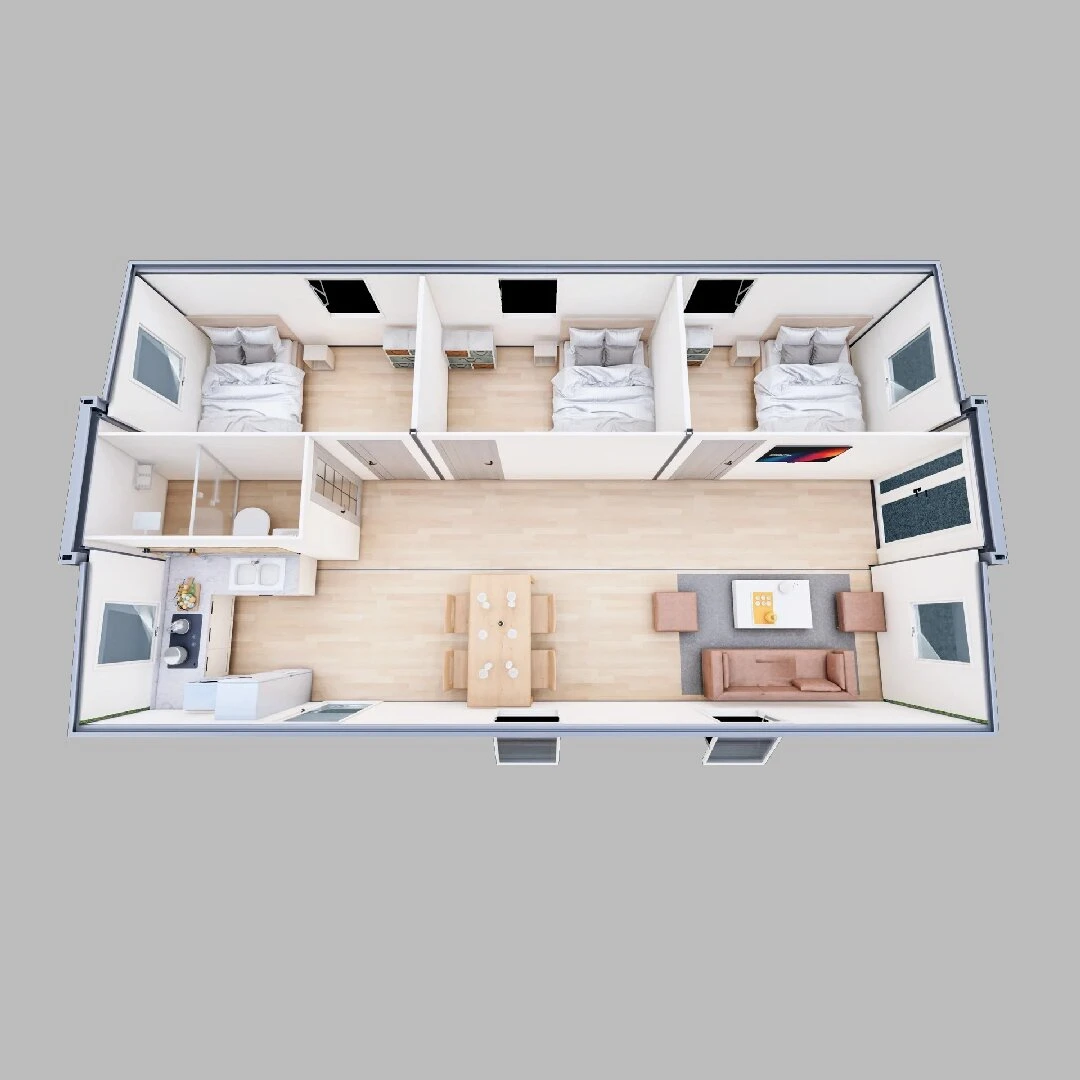

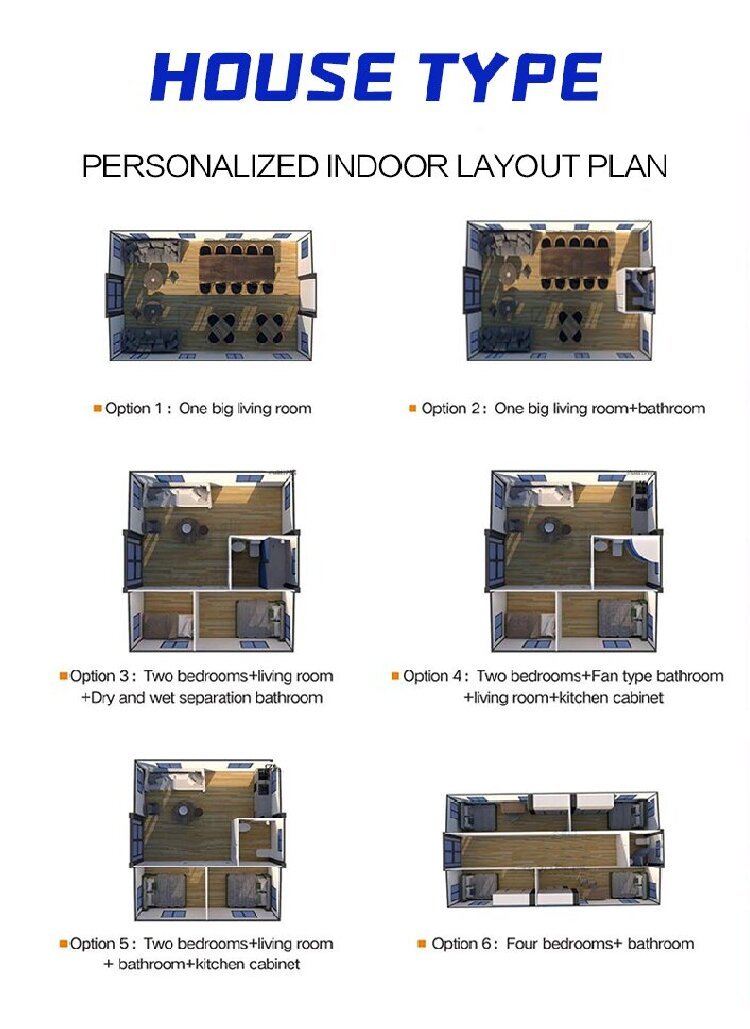

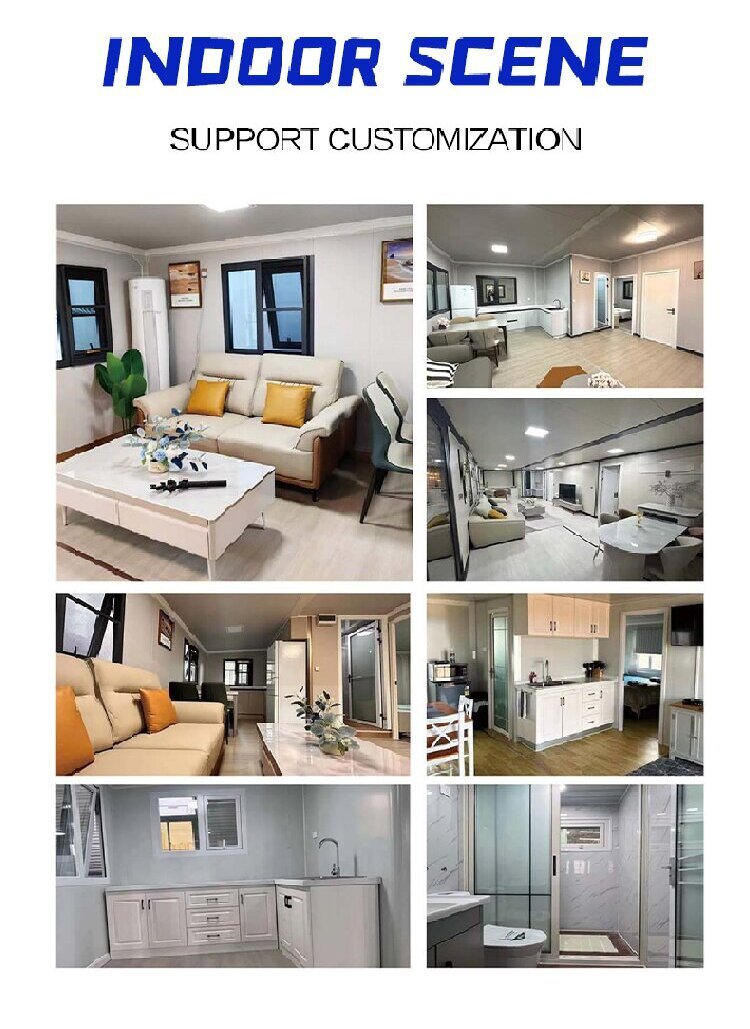

Internal design

free design

Standard

strictly follow ASTM, JIS, EN, DIN, GB and other international and domestic authoritative standards

Product life

more than 20 years

Transportation

sea transportation, 2-6 sets/1*40hq

1742520085761518191824117760.jpg1742520102761518263123091456.jpg1742520113761518312339021824.jpg1742520120761518341300658176.jpg1742520126761518363786387456.jpg


Product Features:

1. Space saving

It can remain compact when not in use, reducing the floor space occupied, and can quickly increase the usable area when needed to improve space utilization.

2. Flexible and changeable

The design is flexible and can be customized according to different scenarios and needs.

3. Economical and practical

Compared with traditional buildings, it has a lower cost. At the same time, its long service life and low maintenance cost make it an economical and practical building solution.

4. Safe and reliable

It is built with prefabricated modules, with a safe and reliable structure, strong wind and earthquake resistance, and good thermal insulation effect. During the design and production process, it will undergo strict quality control and safety testing to ensure that it can withstand various environmental conditions and pressures during use.


Application Scenarios:

Residence/Office/Hotel/Shop/School/Hospital/Camping/etc





20foot Expandable Container House
SizeExternal sizeL5850*W6300*H2480mm
nternal size5510*6200*2240mm
Folding size5850*2200*2480mm
Weight2400kg

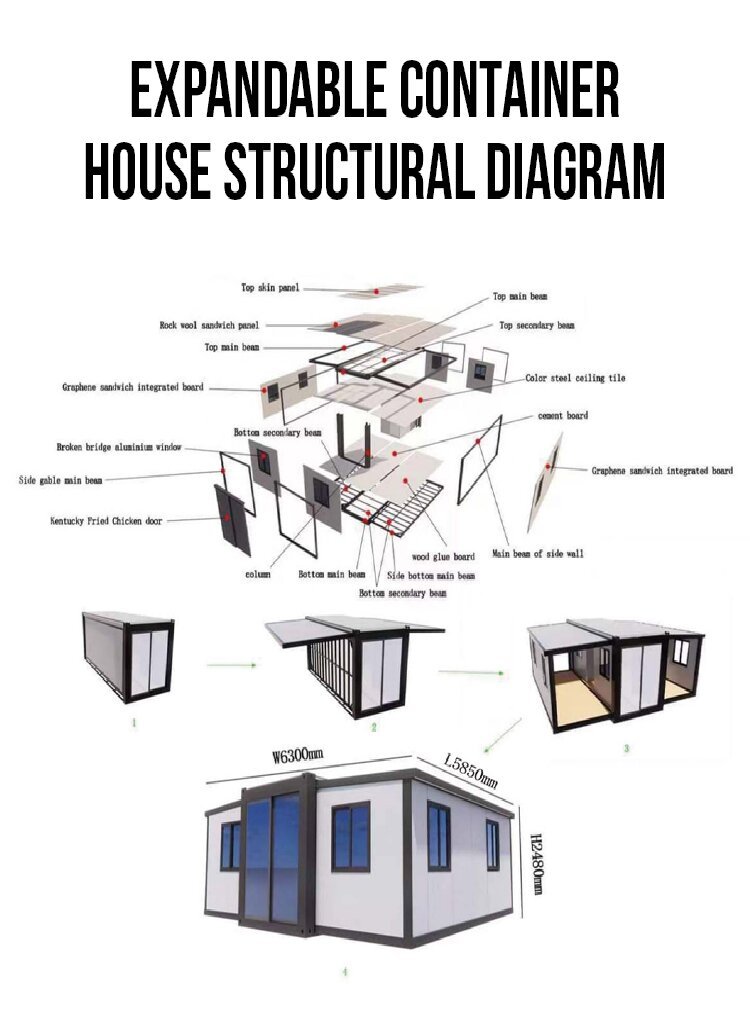

 Frame StructureMiddle top girder80*120*T2.5mm
Mid-sole girder160mm profile*T2.2mm
Hanging head/corner fitting*8pcs160*210*160*T3mm
Main top purlin30*30*T1.0mm
Main bottom purlin50*100*T1.Omm
Side top side frame50*50*t1.5mm U-iron stee
Side bottom purlin40*60*t1.5mm
Side waterproof guard foldT1.5mm
Folding hinge3mm weld hinge
Overallframe anti-corrosion coatingElectrostatic spraying/straight white plastic powder
Top RoofExternal top plate50EPS board
Internal ceilingColor steel 831 ceiling tile
WallMain body50EPS board
Side top board50EPS board
Internal partition50EPS board

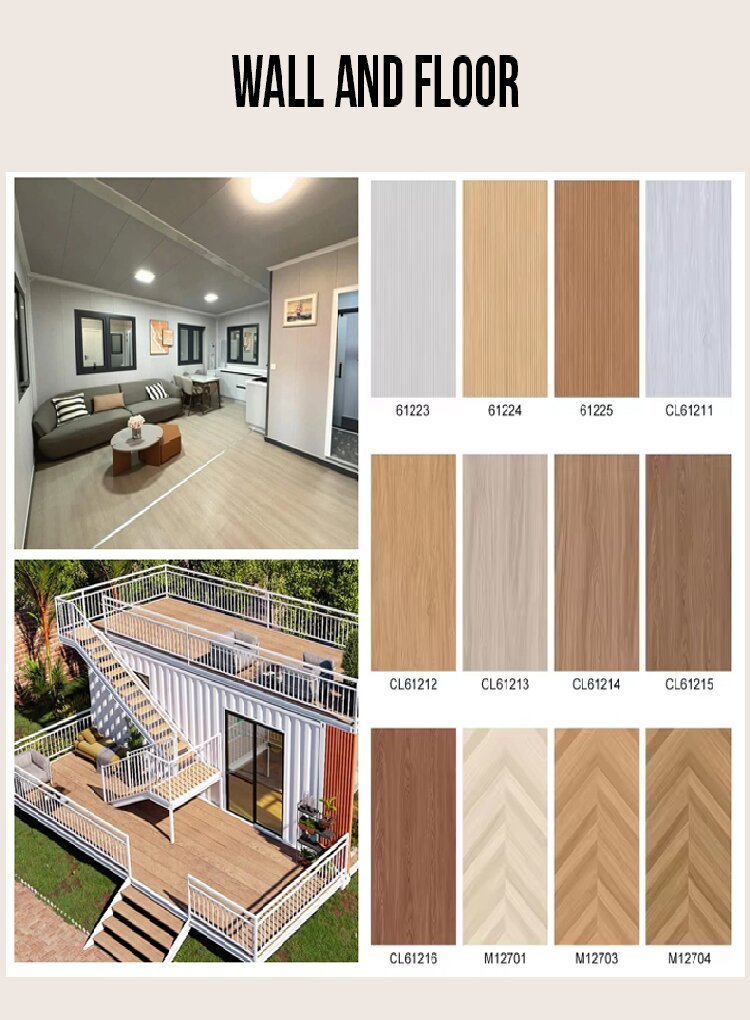

FloorIntermediate floor18mm cement fiber board +1.6mm wood
grain  rubber  sheet
Side floor18mm wood board +1.6mm wood grain
rubber sheet
Gap JunctionAluminum sheet120mm width

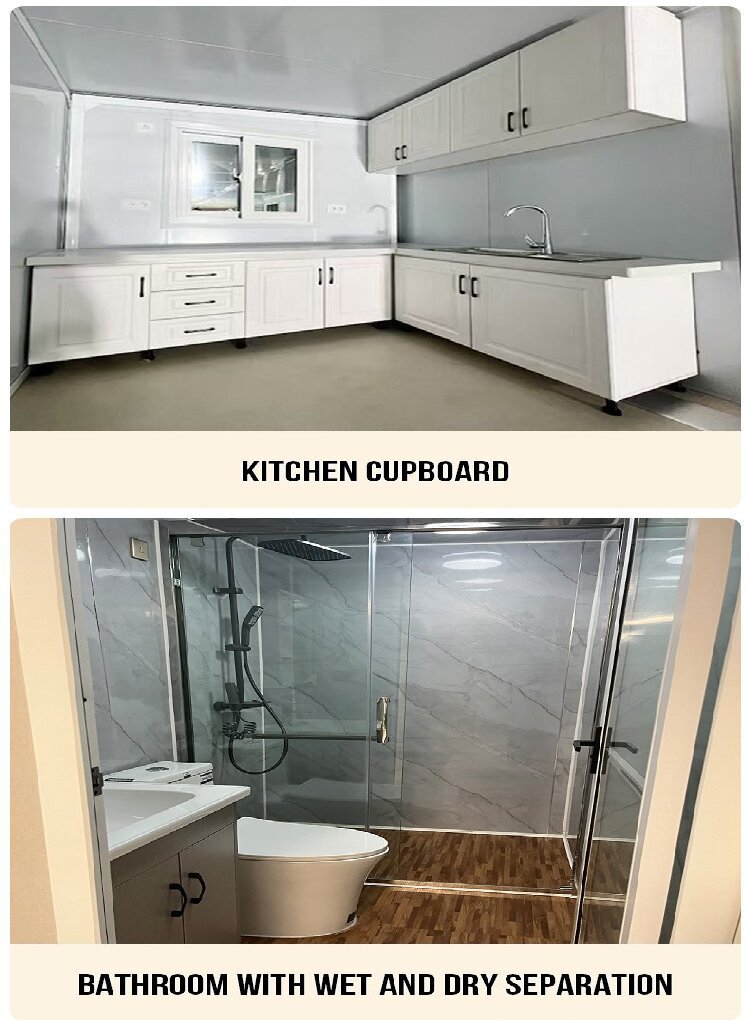

Washroomnclude close stool toilet *1, ceramic cabinet wash basin *l, hand shower nozzel *1 set

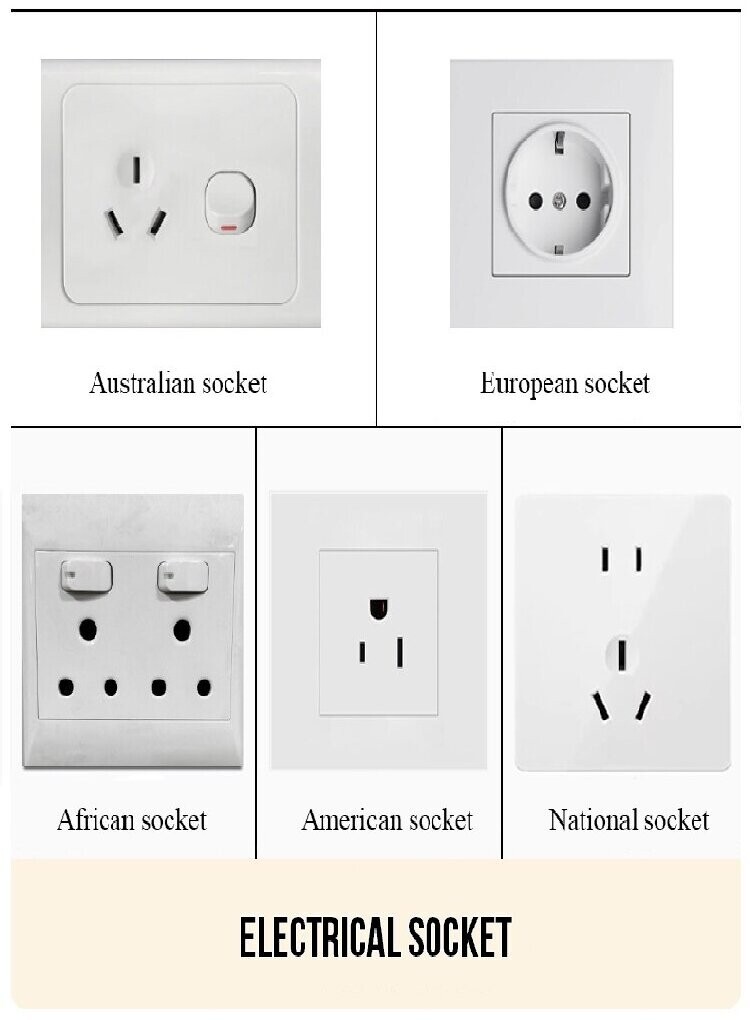

   Electrical ConfigurationLED ceiling round lamp *4pcs, Single-open socket *5pcs,
Three-hole socket *3pcs,
Five-hole socket *5pcs,
Air-conditioning socket *3pcs,
32A leakage protector *lpc,
2P circuit breaker *2pcs,
One set of distribution box and one set of industrial socket

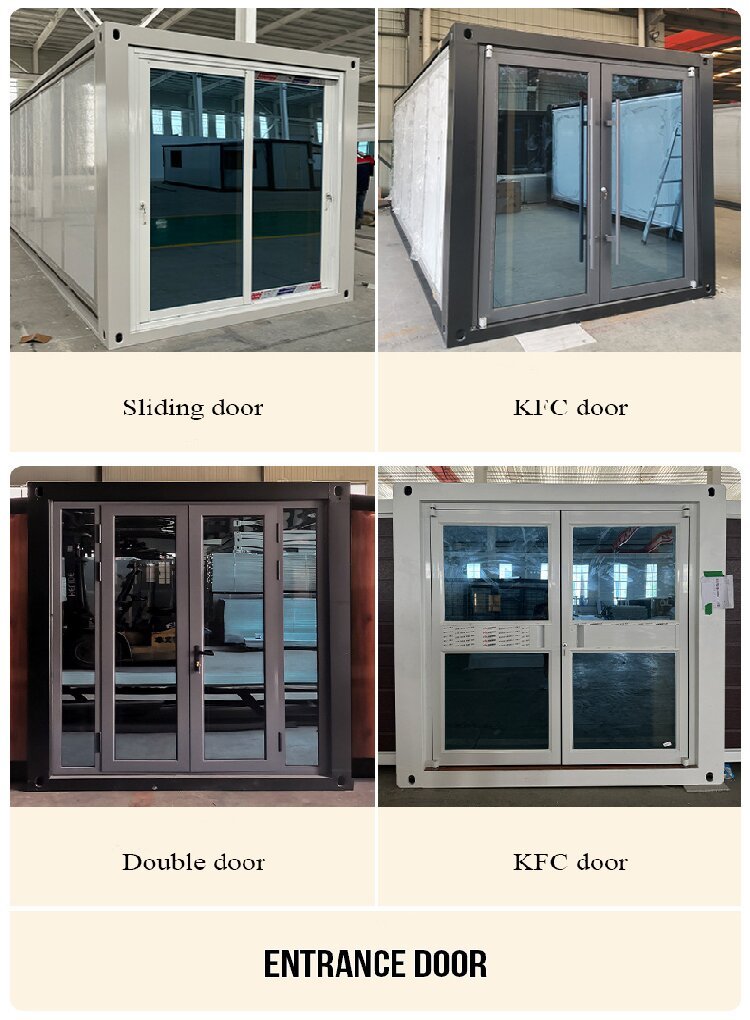

Gate&Door1780*2160mm KFC double glass entrance gate *lpc
Window930*930mm aluminum alloy sliding window *8pcs
500*925mm aluminum alloy sliding window *lpc



Frequently Asked Questions (FAQ):

Q: What are the advantages of your factory?

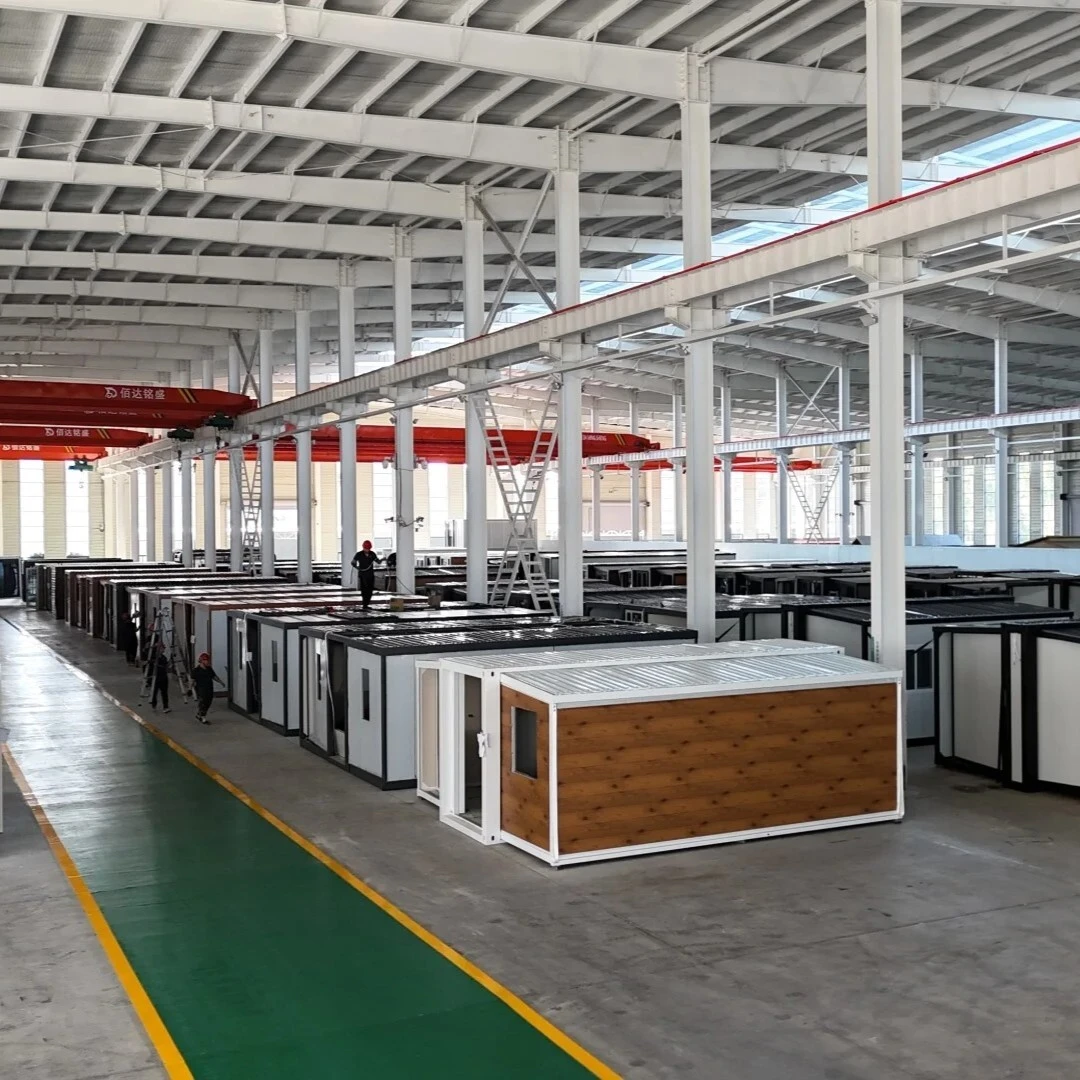

A: We not only have a container house assembly factory, but also steel raw material production factories, which does not rely on procurement and saves purchase costs of material, more competitive prices and best after-dales service than other factory.

Q: How do you control quality?

A: Mill Test Certification is supplied with shipment, third Party Inspection is also available.

Q: What is your supply capacity?

A: 50 sets of container houses per day and 1,500 sets per month.

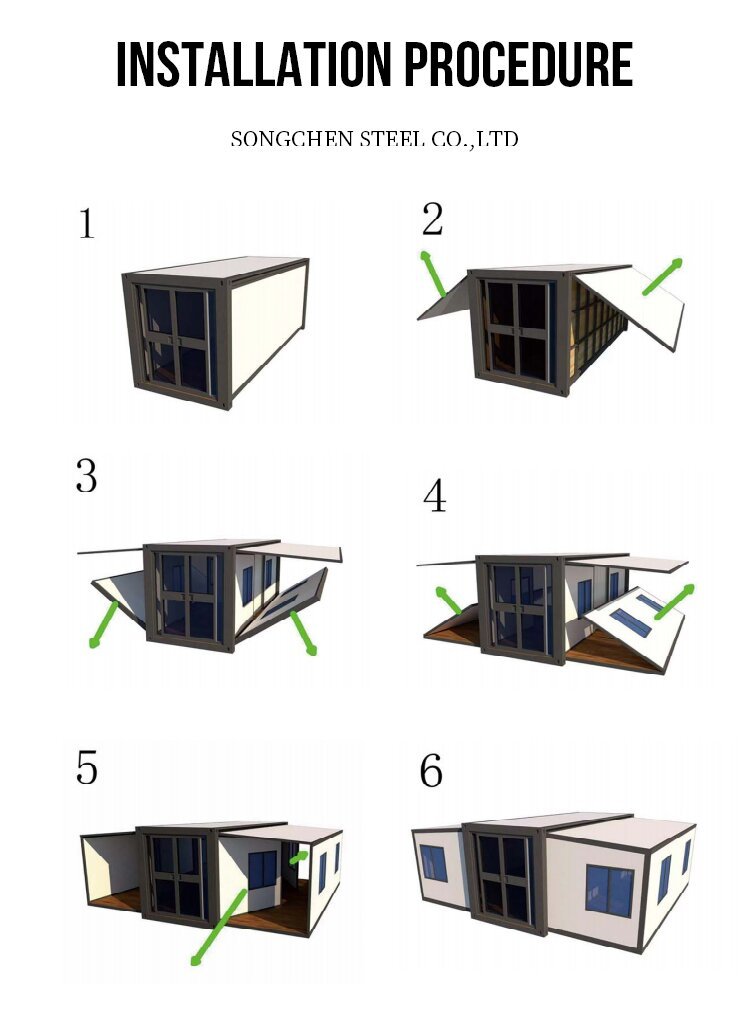

Q: How to install?

A: Instruction manual and video will be provided or online technical support installation instructions, to ensure that customers can complete the installation quickly and well.

Q: How long is your delivery time?

A: It depends on the order quantity and delivery destination, Please consult customer service to define specific time.

Q: How many coutries you already exported?

A: Exported to more than 50 countries mainly from North America, South America, Southeast Asia, Middle East, Africa, etc.



Contact Us:

Want to choose the good quality container house for your project? Contact us today for professional advice, detailed quotes and attentive service. Our team of professionals look forward to working with you.

E-mail: chloezhang@songchensc.com

Tel: +86 18369600176

Choose container house from our factory - where quality goes hand in hand with reliability.
